טורקמטר מקצועי, עם הינע ''1/2, תוצרת HAZET

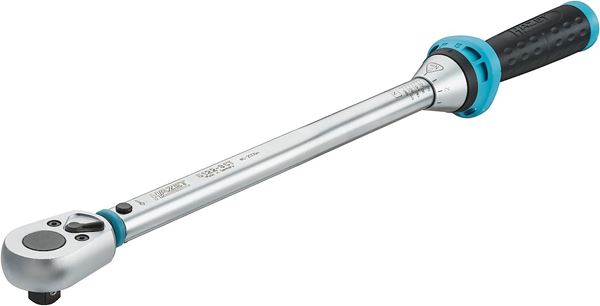

Torque wrench
Nm min-max: 40 – 200 Nm ∙ Tolerance: 3 % ∙ Square, solid 12.5 mm (1/2 inch)
Article no.: 5122-3CT
EAN: 4000896219001
Product information
User-friendly reversible ratchet
Accuracy ± 3 % of scale value (in direction of actuation for right-hand tightening
For left-hand tightening, use our torque wrenches with insert tool)
(5107-3 CT ± 4 % accuracy of scale value)
Safety:
Haptic (close-gap release)
Audible ("click" sound)
Designed for rough workshop use
Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry.
Optimised sealing ring to protect against debris
Ratchet repair set for customer-oriented self-assembly enables decades of use
Handle with better grip for easier power transmission
Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
Safe locking of the setting values by latching function on the rotary assembly
Rotary assembly in triangular form prevents uncontrolled rolling
Lock symbols indicate the respective locking status.
Can be attached to the cable loop through openings on the locking rotary assembly
Easy-to-read, high-contrast scale
Permanent readability due to laser marking on the scale bush
Integrated shift lever
5121-3 CT – 5123-3 CT: shift level with idle function – reduces risk of injury and malfunction
With calibration certificate and serial number
Delivery in sturdy Hexa plastic box
DIN 3120, ISO 1174-1, DIN EN ISO 6789-2:2017
Made in Germany
Output: Square, solid 12.5 mm (1/2 inch)
Dimensions / length: 519 mm
Net weight: 1.17 kg
Nm min-max: 40 – 200 Nm
Tolerance: 3 %
Scale Graduation (Nm): 1 Nm
Effective torque wrench length min.-max. I1 mm: 434.43 – 411.87 Nm
Actuating force min.-max. kg: 9.4 – 49.5 kg
Number of teeth: 32 (Opening angle 11.25°)
Head Thickness a: 19.6 mm
Head Width b: 44 mm
